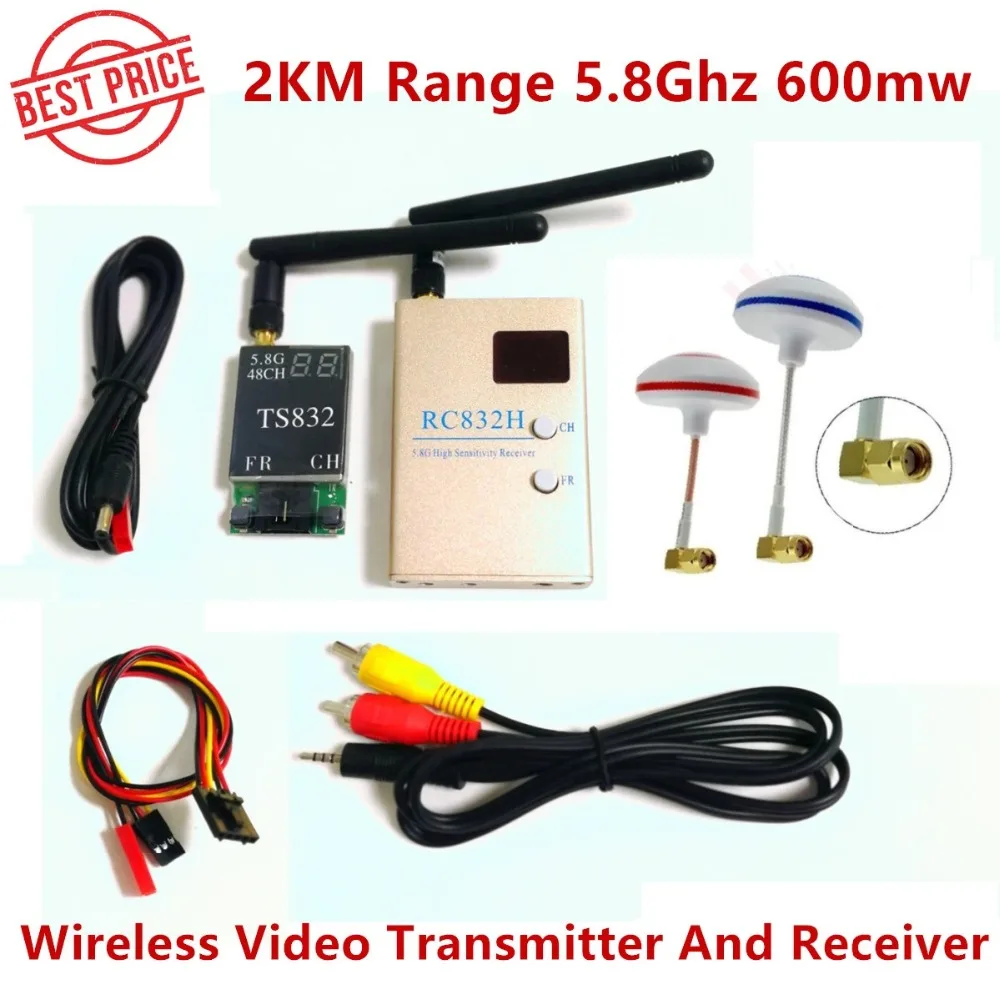

FPV 5.8G 5.8GHz 600mW Wireless AV Audio Video 48CH RC Transmitter TX TS832 & Receiver RX RC832H For Racing drone F450 QAV250
1 x Transmitter TS832 Receiver RC832H with all cable
2 x L Shape Inner Hole Antenna
• 48 channels: Cover A, B, E bands and F bands
• Two switching buttons for the band and channel
• Two digits display for the band and channel
• Power off memory for last channel and band
• dual Independent video and audio signal outputs
Item Name: TS832 transmitter
Power input: 7.4-16V (3S Lipo suggested)
Transmitting Power: 600mA
Antenna Gain: 2db
Working Current: 220mA at 12V
Video Format: NTSC / PAL Auto
Video Bandwidth: 8M
Audio Bandwidth : 6.5M
Weight: about 22g
Dimension: 54x 32x 10mm(excluding antenna)
Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug
Item Name: RC832H receiver
Power Input: 12V
Working Current: 200mA max
Antenna Impedance: 50Ω
Antenna Gain: 2db
Video Impedance: 75Ω
Video Format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: about 85g
Connector: receiver module side RP-SMA jack, antenna RP-SMA plug
48 channels choice to get the best transmitting quality.
Compatible with A,B,E and F frequency bands
Super small 200mA current for 600mW wireless transmitter power.
Smaller size with lighter weight.
48 CH compatible to all FPV 5.8g receivers.
5.8G 600mW 48 Channels AV wireless FPV transmitter
600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.
5.8Ghz FPV High-gain Clover Mushrooms RP-SMA Male Antenna
A brand new design, 5.8 G Antenna gains for FPV aerial photo. All the products have a strict test, the standing-wave ratio is lower than 1.5. This is exactly the first choice for FPV,and it can effectively expand the launch distance and angle.
The blue part can bend.
GGSM: 5.72G 5.74G
L shape inner hole
Function: RC FPV high-gain antenna
For Vehicle Type: RC Airplanes, RC Helicopters
Material: Alumium, Plastic
How to use?
If you need camera,please find in our store
